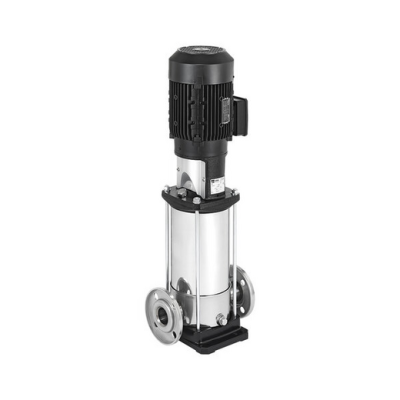

EBARA EVMS Series , EVMSL , EVMSG Vertical Multistage Pump

Vertical multistage centrifugal pump available in different materials:
• Stainless steel AISI 304 (EVMS)
• Stainless steel AISI 316L (EVMSL)
• Cast iron (EVMSG)

Technical data

• Flow rate : 1, 3, 5, 10, 15, 20, 32, 45, 64, 90 m³/h
• Total head : 249 m
• Max. working pressure : 1.6, 2.5, 3.0, 3.5 Mpa (16, 25, 30, 35 bar)
• Max. temperature of the liquid :  -30°C ÷ +140°C
• MEI  : > 0.7
• Poles : 2
• Insulation class
  F for single phase version
  F (for high temperature class B) for three phase version
• Protection degree : IP55 (up to 11 kW), IP56 (over 15 kW)
• Voltage
  Single-phase 230V±10%
  Three-phase 230/400V±10% (up to 4kW)
  400/690V±10% (over 5.5kW)
